Broadcast from the browser, not a desktop encoder

Traditional internet radio expects operators to run BUTT, Nicecast, or OBS alongside a stream URL and mount point. That is fine for engineers — fragile for church volunteers on unfamiliar laptops.

The product bet: move encoder complexity to a server-side bridge the operator never sees. They open a web page, pick microphone or tab audio, paste a token, click start. Video streaming in this same monorepo deliberately avoided a bridge; audio accepts it because the UX win is larger.

I owned the operator experience, listener surface, streaming-origin architecture, WebSocket bridge, Icecast/nginx provisioning scripts, health APIs, and the runbook. The technical decision was not “browser audio is cool.” The product decision was that the person starting a devotional broadcast should not debug mount points, source passwords, encoder formats, or local audio routing.

This is where the audio case study deliberately differs from the video case study. For video, the simplest operator path was OBS directly into nginx-rtmp, so I removed the bridge. For audio, requiring BUTT or OBS would create unnecessary friction, so I accepted a small server-side bridge. Same philosophy, opposite architectural choice: put complexity where the user's mental model is least harmed.

Operator browser
  MediaRecorder (WebM/Opus chunks every 1s)
    → wss://stream…/broadcast?token=…
        → nginx TLS (access_log off on ingest — token in query)
            → Node bridge :8090
                → ffmpeg stdin → MP3 128k → icecast://127.0.0.1:8000/live
                    → https://stream…/live (public listeners)

Vercel app (audio.radioalvoradatv.com.br)
  /api/now-playing → Icecast status-json.xsl
  /api/health → ok when source connected

Browser audio is not one format. Depending on the browser, MediaRecorder may output WebM/Opus, Ogg/Opus, or MP4. Icecast can serve many formats, but the safest listener target for ordinary HTML audio players is still MP3. The bridge therefore treats browser chunks as an ingest format, not a distribution format.

ffmpeg reads the WebSocket binary stream through stdin, rate-limits input with -re, converts to libmp3lame, and pushes to the Icecast source mount. In plain language: the browser sends whatever it can record reliably; the server turns it into the thing radios and browsers understand.

Icecast binds 127.0.0.1:8000 only. nginx terminates TLS on 443 and proxies /live for listeners and /broadcast for ingest. Port 8000 is blocked in Oracle security lists. Admin UI returns 403 at nginx.

Bridge runs as unprivileged radio-bridge user with systemd sandboxing (ProtectSystem=strict, memory cap 256M). Long proxy timeouts (3600s) keep live sessions alive.

The bridge has a single active broadcast session by design. A second operator receives HTTP 409 instead of replacing the current program. If ffmpeg exits, the WebSocket closes with an encoder error so the UI can stop pretending audio is still going out. If the bridge process crashes, systemd restarts it.

The health model is intentionally simple: Icecast is the source of truth. If status-json.xslreports a source on /live, the API returns ok: true. If no source exists, the app is not “down”; it is off-air. That distinction matters because HTTP failure would describe infrastructure, while Sem sinal describes broadcast state.

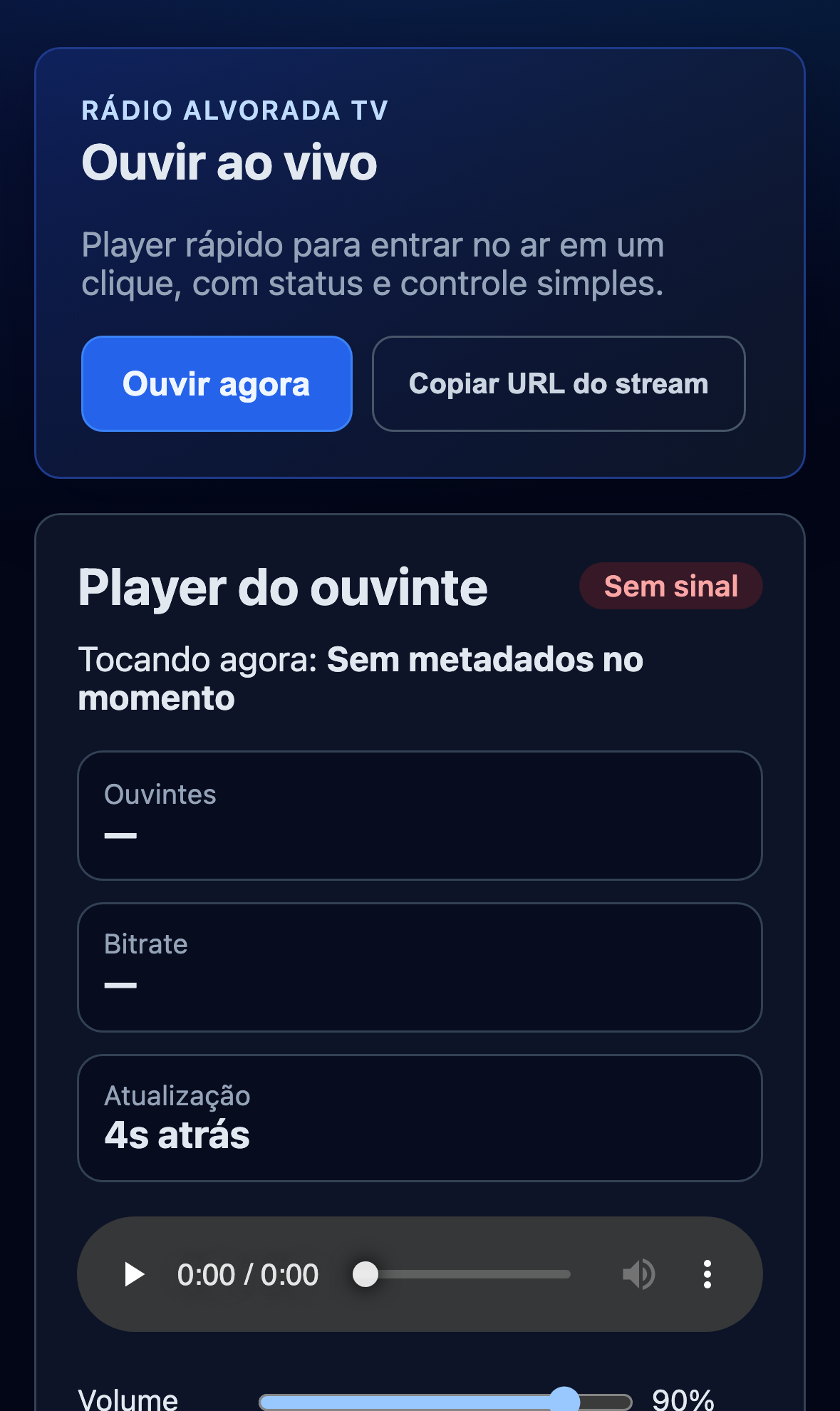

/api/health always returns HTTP 200 — the ok boolean reflects whether Icecast reports an active source on /live. Off-air UI shows Sem sinal, not a fake loop (unlike video's YouTube fallback — a deliberate product difference).

Infrastructure is 24/7; content is live-only. The VM and bridge run continuously, but audio exists only when someone is broadcasting. That honesty matches volunteer-operated radio.

This project proves I can design an operationally safer broadcast workflow and then implement the infrastructure needed to make that workflow real. The value is not the novelty of WebSockets; it is the way browser capture, ffmpeg, Icecast, nginx, Vercel APIs, and operator copy combine into one coherent experience.
