Part 2 of 2 · Design engineering

A tap is only safe if the state survives

I turned the mobile design into a working React prototype where every attempted action can explain what was allowed, what was blocked, and what information remained intact.

Typed transition functions hold the product rules. React renders their results. The interface makes recovery, recipient order, focus, status, and destructive confirmation visible through the same controls a person would use.

The prototype uses fictional local data and no external service. It demonstrates client behavior, not production authorization, persistence, or signature delivery.

45 second summary

What I implemented and what this story proves

Problem: A connected prototype needed executable rules, not convenient screen links.
Ownership: I designed the transition model, interface states, recovery behavior, accessibility mechanics, and tests.
Stack: Next.js, React, TypeScript, semantic HTML, CSS, Vitest, and Playwright.
Evidence: Reachable browser states, exact transition logic, preserved input, and automated checks.
Status: A local browser prototype with fictional fixtures and deterministic scenarios.
Limit: No backend authorization, account sync, signature delivery, or production write is claimed.

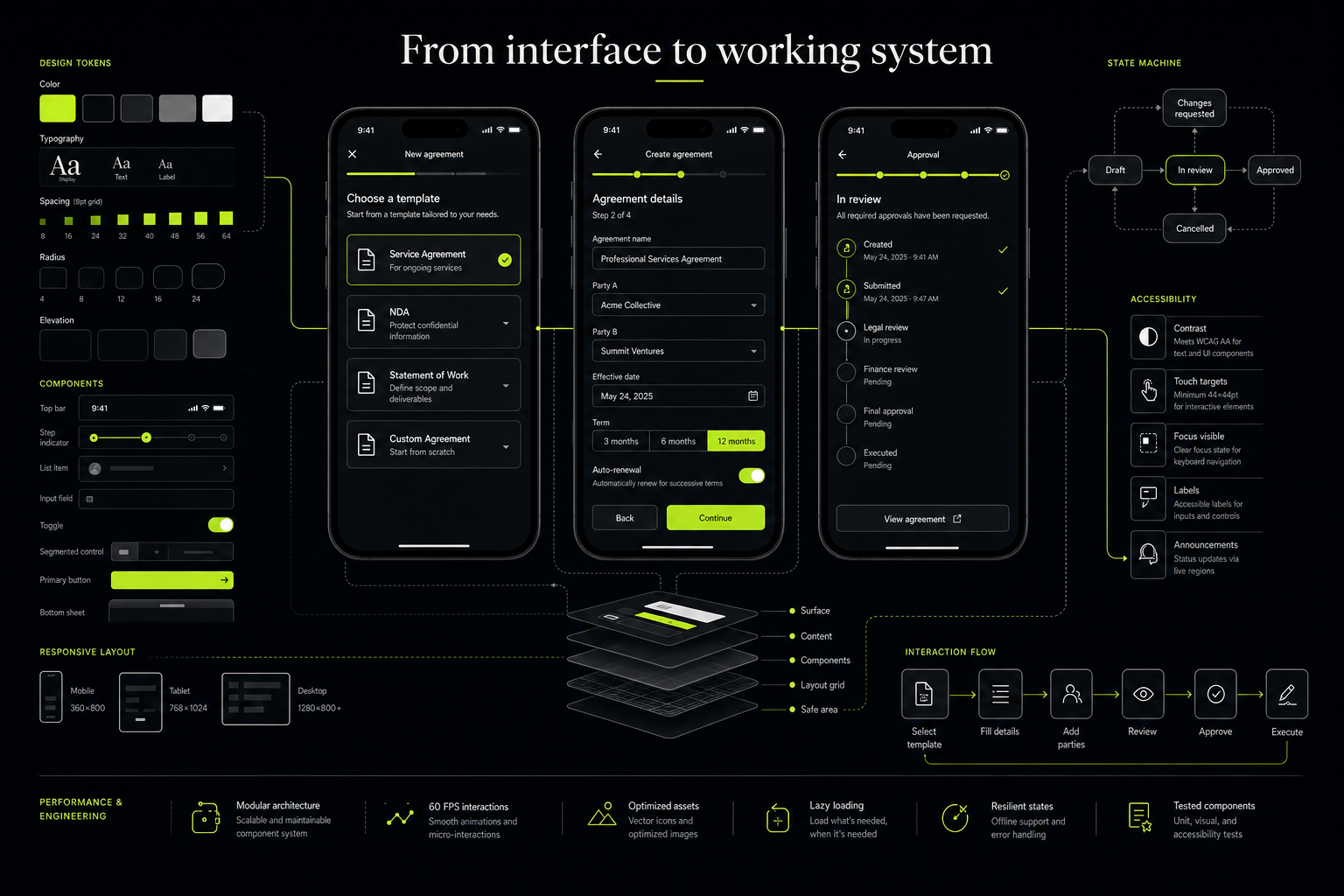

Editorial composition of mobile creation and approval states with design tokens and state diagram — Editorial system view. Live proof below comes from the working prototype and transition inspector.

Episode 1 · Transition contract

I turned the prototype path into a contract

Each journey accepts a typed action and returns either a next state or a guard error. Unsupported actions preserve the current data. A screen cannot skip responsibility, required information, recipient validation, or a valid prior state.

Approvalreviewing

responsibilityrequired contextnetwork

approved
failed
changes requested
cancelled

Creationselecting template

valid fieldsstakeholdertemplate version

created
failed
draft restored

Signatureconfiguring

valid identityunique recipientexplicit order

waiting
completed
declined
expired
voided

Branching transition contractGenerated from journeyContracts in domain.ts. Guards can preserve the current state, produce a recoverable failure, or permit a terminal result.

Previous state: approval:ready
Attempted action: SUBMIT
Guard result: accepted failure branch
Changed fields: stage
Next state: approval:failed
Announcement: Approval was not sent. Reconnect and retry.

One transition, fully exposedThe live inspector uses this same evidence shape after every attempted action. A rejected action reports the guard without hiding or replacing existing data.

if (action.type === "SUBMIT" || action.type === "RETRY") {
  if ((action.type === "SUBMIT" && state.stage !== "ready") || (action.type === "RETRY" && state.stage !== "failed")) {
    return rejected(state, action.type, approvalStageKey, "Submission is not available from the current state.")
  }
  if (!state.responsible) {
    return rejected(state, action.type, approvalStageKey, "Assume responsibility before approving.")
  }
  if (state.network === "offline") {
    const next = { ...state, stage: "failed" as const, message: "Approval was not sent. Reconnect and retry." }
    return accepted(state, action.type, next, approvalStageKey, ["stage"], next.message)
  }
  const next = { ...state, stage: "submitting" as const, message: "Approval is ready to confirm." }
  return accepted(state, action.type, next, approvalStageKey, ["stage"], next.message)
}

Episode 2 · Recovery

Failure does not get to erase intent

Approval answers survive an offline attempt. Creation keeps its title, purpose, and stakeholders through validation and a retryable failure. A saved creation draft can restore after reload on the same device, while the story remains explicit that this is not account or server persistence.

Approval

Preserve: Risk answer and budget confirmation
Interrupt: Offline submission
Recover: Reconnect and retry

Creation

Preserve: Title, purpose, and stakeholders
Interrupt: Retryable submission failure
Recover: Restore and submit

Local draft

Preserve: Editing state and entered values
Interrupt: Reload on the same device
Recover: Resume from saved data

Preservation is part of the transitionFailure changes status without discarding intent. Local restoration is explicit and remains separate from any claim of account or server persistence.

Approval after an offline attempt

Creation after a retryable failure

Episode 3 · Explicit order

I made hidden order operable

Signature recipients are validated before review, stored as an ordered array, and moved through named controls. The same array drives review and progress. After send, visible controls can reach waiting, reminder, complete, declined, expired, and voided states.

Before action

1Mara Reed
2Casey Morgan
3Jon Bell

MOVE Casey Morgan upaccepted

After action

1Casey Morgan
2Mara Reed
3Jon Bell

Order is data, not decorationNamed movement controls update the same ordered recipient array used by review and progress states. Drag is not required.

Episode 4 · Perception

I made state changes perceivable

Journey changes move focus to the new heading. Validation focuses a summary and connects errors to fields. Accepted and rejected actions update one polite live region. Recipient movement uses named buttons. Destructive actions require confirmation. Reduced motion removes movement without removing feedback.

These are implemented behaviors. I do not call them accessibility compliance because no recorded audit establishes that claim.

01Journey change
Move focus to the new screen heading
02Validation failure
Focus the summary and associate each invalid field
03Accepted action
Announce the concise result through one polite region
04Recipient movement
Use a named button and preserve a logical order
05Destructive request
Require a second explicit confirmation
06Reduced motion
Remove movement without removing state feedback

State must be perceivableAccessibility changes the mechanics of each control. The behavior remains visible, operable, and announced without claiming a completed compliance audit.

RuleImplementation proofBrowser proof

Approval guardUnit transitionRendered disabled and ready states

Offline recoveryUnit preservationBrowser retry through controls

Draft restorationSerialized local draftReload and resume

Recipient validationInvalid and duplicate rulesForm error association

Recipient orderArray movementNamed keyboard action

Focus and statusBrowser focus checksLive region output

Responsive layoutPublished width loopNo page overflow

Rule to proof mapEach published engineering claim connects to an implementation rule and a rendered browser check. Counts are secondary to traceability.

Production boundary

The prototype stops at the browser

The client can demonstrate rules, persistence on one device, focus, and recovery. Production still needs trusted authorization, account synchronization, server confirmed writes, signature provider callbacks, idempotency, and conflict resolution.

Implemented here

Fictional fixtures
Typed transitions
Local draft restoration
Validation and recovery
Focus and announcements

Required in production

Trusted authorization
Account synchronization
Server confirmed writes
Signature provider callbacks
Conflict resolution

The browser boundaryThe prototype proves client behavior. It does not authorize a reviewer, deliver a signature request, or confirm a production write.
